ARCH 655 Project 1

Project 1

Cytokinesis Tower

The Hayri Atak Architectural Design Studio's project, "Cytokinesis," planned for Doha. My design intent is to create a façade that rotates according to altitude and azimuth angle of sun path diagram.







Form Creation

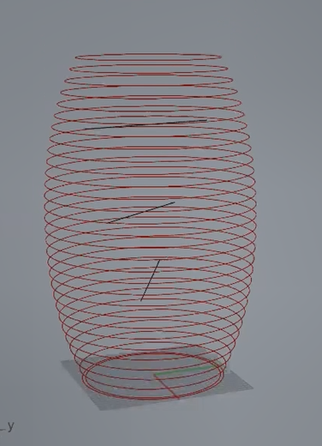

1.     I created a circle and made a series of circles using a curved scale using Graph Mapper. Then I used Evaluate Curve function and Shatter node to segment the curves.

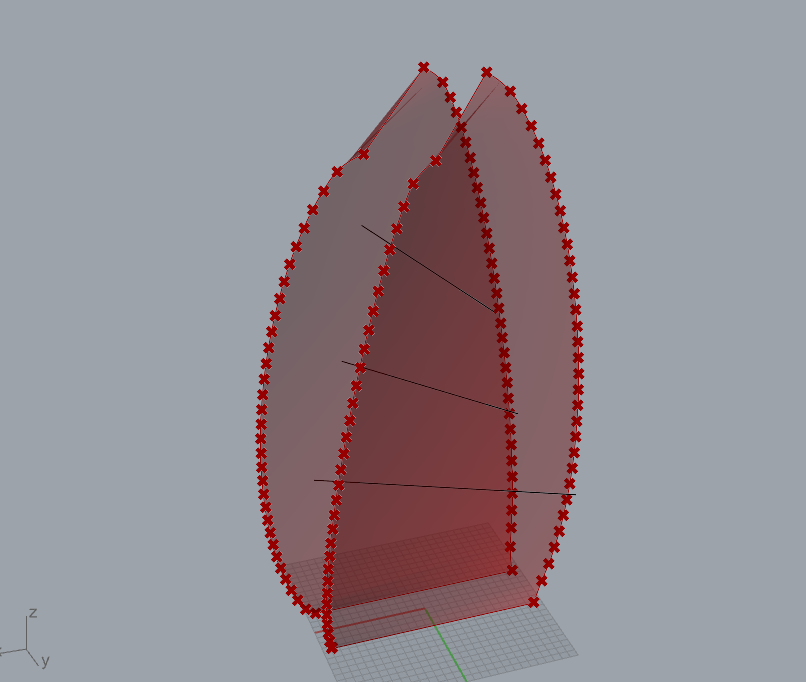

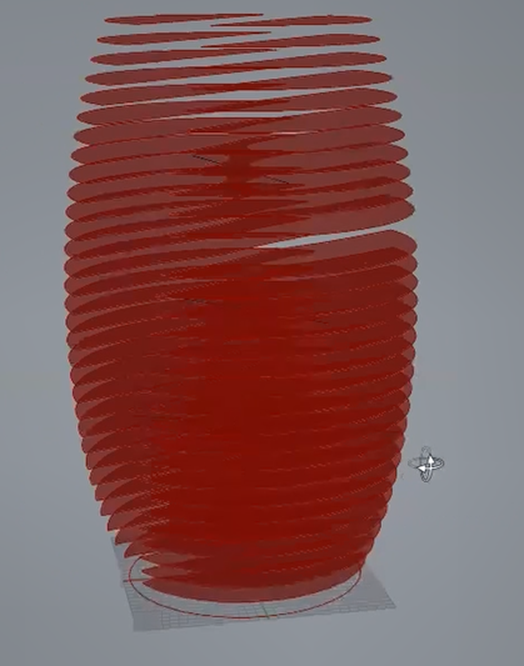

2.     I used Loft to create outer and inner surfaces. Then I made perforated surfaces using Split Brep Multiple node.






3.     Then I joined the Items using Brep Join

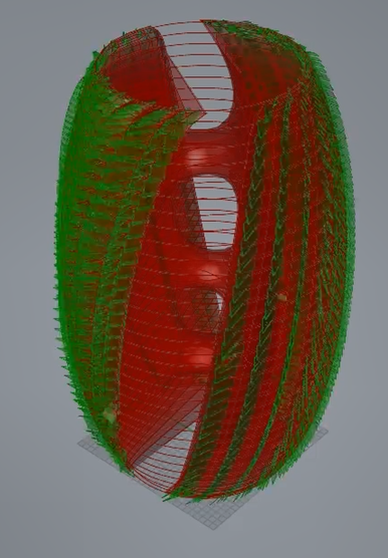

I used Weaverbird’s Laplacian Smoothing to join the surfaces seamlessly. Then I used Triremesh to create equilateral triangles.












Outer Panels

4.     Then I converted the outer layer into sengemted 3-point or 4-point Mesh. I used Deconstruct Mesh to create mesh virtices and faces. Then I used Deconstruct face to create 4-corner indices. Then I used 4PointSurfaces to create smaller surfaces.






5.     Then the surfaces could be rotated using Azimuth and Altitude angle of Sunpath of that location. I used Ladybug pluggin for this purpose









Outer Facade

6.     I used Weaverbird’s Mesh window and Picture Frame to create the outer layer.

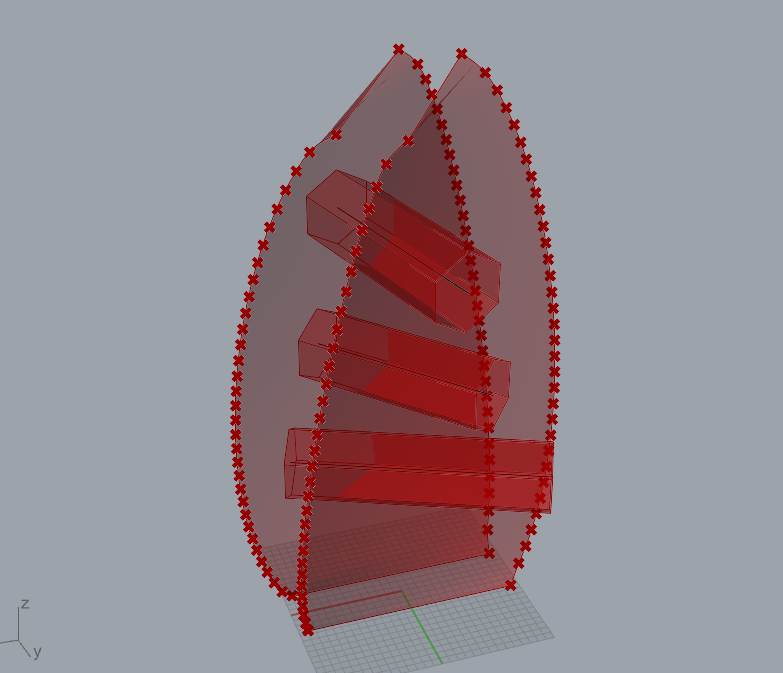

7.     I created floor plans by using SubDMesh and Splitting the curve. Then I used Boundary Surfaces node to create planar surface from curves.


8.     Then I got the final result.




9.     The user can change parameters in the green group on the left side.






10.  This is the curvature analysis of the form.





Screenshots










AI Created Images (Dall E)



Prompt: edit this (Cytokinesis Tower) image and attach sunshade according sun angle
