ARCH 653 Project 1



Building Information

Building Name: Kolumba, art museum (former St. Kolumba church)

Location: Germany

Architect: Peter Zumthor

Image 1: Kolumba Builbing



Project Video

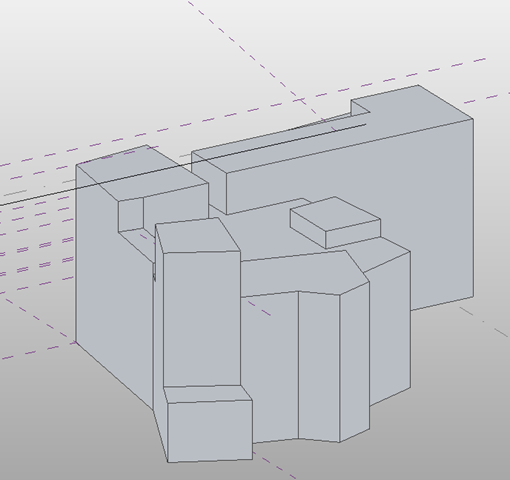

Building Mass:

The building mass was created by using solids and voids. It was difficult to control void using parameter. I wanted the profile of the roof to remain the same. So I created one equation for each height to maintain the overall profile of the roof and sure the height does not go beyond a certain point.

H1= if(height_increase_1 > 0', height_increase_1 + height, height)

Envelope Pattern:

The original building had perforated bricks. I faced a lot of issues with perforated brick pattern because it overloads Revit. I was unsuccessful to load that pattern my building. So, I changed the street facing façade of the building.

I started with a 4-point adaptive circle to create the hole in my pattern.

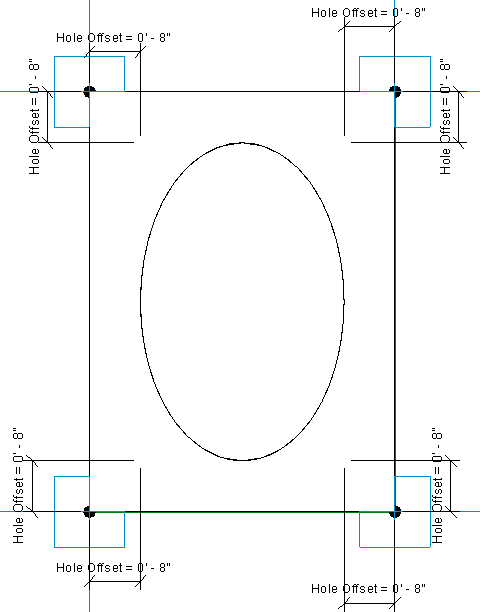

Image 2: Adaptive 4 Point Circle



Then I made the pattern that has Hole Offset, Panel height and Hole Height as parameters.



Image 3: Adaptive Pattern Unit


Adaptive Envelope :

I used the front façade as the adaptive envelope. It changes the height maintaining the similar profile of the mass.


Image 4: Adaptive envelope



Parametric Window:

I made a parametric window, that has height, width, frame thickness, position of inner frame, inner frame thickness as parameters.


Image 5: Adaptive Window



Project:


Image 6: Final Building






Challenges:

1.     The adaptive panel does not work for all length and width. When it creates some extra parts, I could not remove it.





2.     I created the mass using solid and void. It difficult to control the voids and use parametric values to manipulate the shape.





3.      Brick parametric adaptive wall does not work. It overloads Revit and Revit stops responding.





References

Ar. Cris Cruz (Director). (2020, August 6). RD073. How to make Parametric Perforated Plate or Panel            in Revit. https://www.youtube.com/watch?v=mPFvspGySxI
designboom,  philip stevens I. (2017, July 26).
        Peter zumthor’s kolumba museum in cologne photographed by rasmus hjortshøj. Designboom |            Architecture & Design Magazine. https://www.designboom.com/architecture/peter-zumthor-                   kolumba-museum-cologne-germany-rasmus-hjortshoj-07-26-2017/
Kolumba Art Museum of the Archdiocese of Cologne. (n.d.). Gigon Guyer Architects. Retrieved March         5, 2023, from https://www.gigon-guyer.ch/en/project/kolumba-art-museum/
Kolumba Museum / Peter Zumthor. (2010, August 6). ArchDaily.
        https://www.archdaily.com/72192/kolumba-musuem-peter-zumthor
PTS CAD EXPERT (Director). (2022, February 1). Parametric Window family in Revit Architecture |            How to create parametric window in Revit. https://www.youtube.com/watch?v=RufB4MQSzbU
S, M. (n.d.). Kolumba Museum in Cologne, Germany. Retrieved March 5, 2023, from                                   https://3dwarehouse.sketchup.com/model/231c38e6cc2f5c014f588ef29e012225/Kolumba-Museum-in-    Cologne-Germany
